Synaptogyrin1 antibody - 103 011

Synaptogyrin is a major synaptic vesicle membrane protein; tyrosine-phosphorylated
Mouse monoclonal purified IgG
Cat. No.: 103 011
Amount: 50 µg
Price: $415.00
Cat. No. 103 011 50 µg purified IgG, lyophilized. For reconstitution add 50 µl H2O to get a 1mg/ml solution in PBS. Then aliquot and store at -20°C to -80°C until use.
Antibodies should be stored at +4°C when still lyophilized. Do not freeze!
Applications

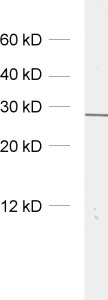

WB: 1 : 1000 (AP staining) gallery
IP: yes (see remarks)
ICC: not recommended
IHC: not recommended
IHC-P: not recommended
ELISA: yes (see remarks)
Clone 80.1
Subtype IgG1 (κ light chain)
Immunogen Recombinant protein corresponding to AA 170 to 234 from rat Synaptogyrin1 (UniProt Id: Q62876)
Reactivity Reacts with: human (O43759), rat (Q62876), mouse (O55100), hamster.
No signal: zebrafish.
Other species not tested yet.
Specificity Specific for synaptogyrin 1 with a weak side-reactivity towards tubulin.
Remarks

IP: In immunoprecipitation (but not in other assays) tubulin coprecipitates with synaptogyrin 1 in about equal proportions. This is due to a direct binding of the antibody to tubulin.
ELISA: Suitable as capture antibody for sandwich-ELISA with cat. no. 103 002 as detector antibody. The ELISA-protocol for membrane proteins is recommended.

Data sheet 103_011.pdf

References for Synaptogyrin1 - 103 011

How to Make an Active Zone: Unexpected Universal Functional Redundancy between RIMs and RIM-BPs.
Acuna C, Liu X, Südhof TC
Neuron (2016) 914: 792-807. 103 011 WB
Structure of synaptogyrin (p29) defines novel synaptic vesicle protein.
Stenius K, Janz R, Südhof TC, Jahn R
The Journal of cell biology (1995) 1316 Pt 2: 1801-9. 103 011 WB, ICC
Structure of synaptogyrin (p29) defines novel synaptic vesicle protein.
Stenius K, Janz R, Südhof TC, Jahn R
The Journal of cell biology (1995) 1316 Pt 2: 1801-9. 103 011 WB, ICC
The expression pattern and assembly profile of synaptic membrane proteins in ribbon synapses of the developing mouse retina.
von Kriegstein K, Schmitz F
Cell and tissue research (2003) 3112: 159-73. 103 011 IHC
Distinctive alteration of presynaptic proteins in the outer molecular layer of the dentate gyrus in Alzheimer's disease.
Haytural H, Jordà-Siquier T, Winblad B, Mulle C, Tjernberg LO, Granholm AC, Frykman S, Barthet G
Brain communications (2021) 32: fcab079. 103 011 IHC-P; tested species: human
Endosomal sorting of readily releasable synaptic vesicles.
Hoopmann P, Punge A, Barysch SV, Westphal V, Bückers J, Opazo F, Bethani I, Lauterbach MA, Hell SW, Rizzoli SO
Proceedings of the National Academy of Sciences of the United States of America (2010) 10744: 19055-60. 103 011
Cat. No.: 103 011
Amount: 50 µg
Price: $415.00
How to Make an Active Zone: Unexpected Universal Functional Redundancy between RIMs and RIM-BPs.
Acuna C, Liu X, Südhof TC
Neuron (2016) 914: 792-807. 103 011 WB
Structure of synaptogyrin (p29) defines novel synaptic vesicle protein.
Stenius K, Janz R, Südhof TC, Jahn R
The Journal of cell biology (1995) 1316 Pt 2: 1801-9. 103 011 WB, ICC
Structure of synaptogyrin (p29) defines novel synaptic vesicle protein.
Stenius K, Janz R, Südhof TC, Jahn R
The Journal of cell biology (1995) 1316 Pt 2: 1801-9. 103 011 WB, ICC
The expression pattern and assembly profile of synaptic membrane proteins in ribbon synapses of the developing mouse retina.
von Kriegstein K, Schmitz F
Cell and tissue research (2003) 3112: 159-73. 103 011 IHC
Distinctive alteration of presynaptic proteins in the outer molecular layer of the dentate gyrus in Alzheimer's disease.
Haytural H, Jordà-Siquier T, Winblad B, Mulle C, Tjernberg LO, Granholm AC, Frykman S, Barthet G
Brain communications (2021) 32: fcab079. 103 011 IHC-P; tested species: human
Endosomal sorting of readily releasable synaptic vesicles.
Hoopmann P, Punge A, Barysch SV, Westphal V, Bückers J, Opazo F, Bethani I, Lauterbach MA, Hell SW, Rizzoli SO
Proceedings of the National Academy of Sciences of the United States of America (2010) 10744: 19055-60. 103 011
Background

Synaptogyrins are tyrosine-phosphorylated proteins with two neuronal (synaptogyrin 1 and 3) and one ubiquitous, synaptogyrin 2 or cellugyrin isoform.
Synaptogyrins are integral membrane proteins and localize to the membrane of small vesicles. Synaptogyrin 1 and 3 are expressed in the brain whereby the latter shows a more restricted expression pattern with high levels in the mossy fiber region of the hippocampus, substantia nigra pars reticulata, pallidum, and deep cerebellar nuclei.
Synaptogyrin 2/cellugyrin, a close relative, is expressed in all tissues, for instance, in distinct populations of GLUT 4 containing vesicles.
