Cat. No. 162 311AbRED |
100 µg purified IgG, lyophilized, fluorescence-labeled with abberior STAR RED.
abberior STAR® dyes have been especially developed for for Stimulated Emission Depletion (STED) microscopy which allows higher resolution imaging compared to confocal laser scanning microscopy. For many of the fluorescence labeled antibodies conjugated to abberior STAR® dyes established fluorescence detection systems can be used. This product or portions thereof is manufactured under license from abberior GmbH. Reconstitute immediately upon receipt! Avoid bright light when working with the antibody to minimize photo bleeching of the fluorescent dye. |
Applications |

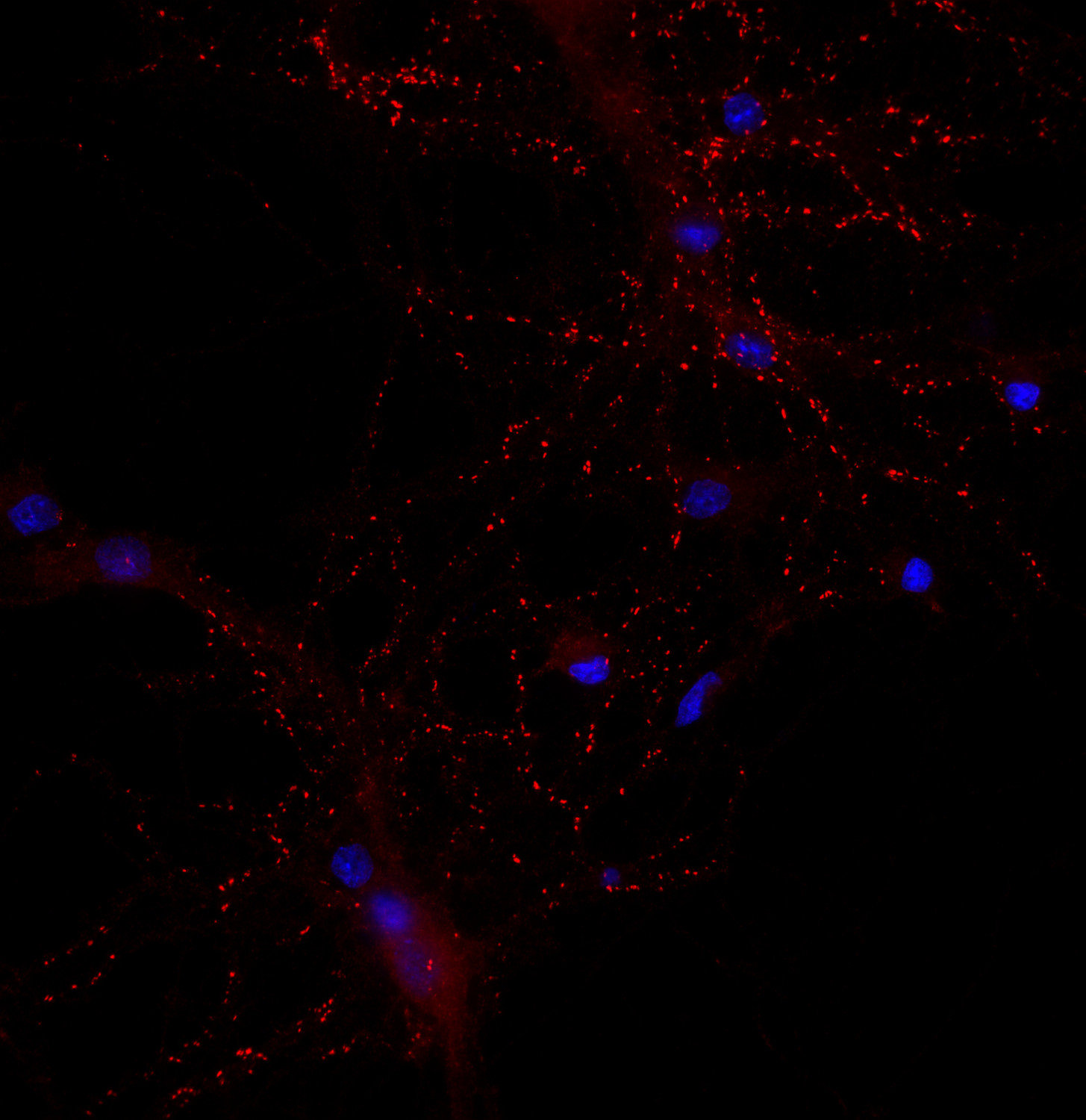

Immunoprecipitation (IP); Immunoisolation or pulldown of a target molecule using an antibody. For details and product specific hints, please refer to the ”Remarks” section.', $event)" style="cursor: help;">IP: N/A Immunocytochemistry (ICC) on 4% PFA fixed cells. Immunoreactivity is usually revealed by fluorescence. Some antibodies require special fixation methods. For details, please refer to the “Remarks” section.', $event)" style="cursor: help;">ICC: 1 : 300 (see remarks) gallery Immunohistochemistry (IHC) on 4% PFA perfusion fixed tissue with 24h PFA post fixation. Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate. Some antibodies require special fixation methods or antigen retrieval steps. For details, please refer to the ”Remarks” section.', $event)" style="cursor: help;">IHC: not recommended Immunohistochemistry (IHC-P) of formalin fixed, paraffin embedded (FFPE) tissue (some antibodies require special antigen retrieval steps, please refer to the ”Remarks” section). Immunoreactivity is usually revealed by fluorescence or a chromogenic substrate.', $event)" style="cursor: help;">IHC-P: not tested yet |
Label | abberior STAR RED |
Clone | 144B12 |
Subtype | IgG1 (κ light chain) |
Immunogen | Recombinant protein corresponding to residues near the carboxy terminus of rat Shank3 (UniProt Id: Q9JLU4) |
Reactivity |
Reacts with: rat (Q9JLU4). Other species not tested yet. |
Specificity | Specific for Shank3 |
Remarks |

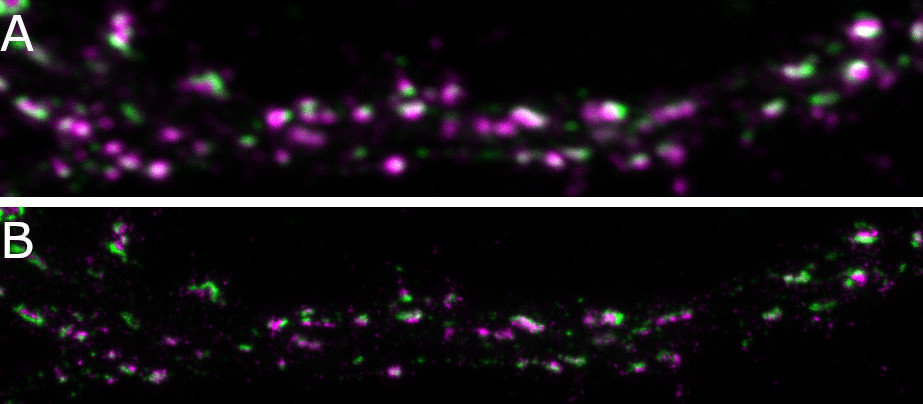

ICC: This antibody conjugate is especially suitable for high resolution STED microscopy. |
Data sheet | 162_311abred.pdf |
Shank1, 2 and 3 are major proteins of the postsynaptic density (PSD). They are composed of several protein-protein interaction domains like PDZ-, homer- and ABP1-binding domains which allow them to crosslink ionotopic and metabotropic glutamate receptor complexes with each other and to the actin-cytoskeleton.
