Synaptic Systems

Cat. No.: 142 003

Amount: 50 µg

Price: $460.00

Cat. No. 142 003	50 µg specific antibody, lyophilized. Affinity purified with the immunogen. Albumin and azide were added for stabilization. For reconstitution add 50 µl H₂O to get a 1mg/ml solution in PBS. Then aliquot and store at -20°C to -80°C until use. Antibodies should be stored at +4°C when still lyophilized. Do not freeze!
Applications	WB: 1 : 1000 up to 1 : 5000 IP: not tested yet ICC: 1 : 200 up to 1 : 500 gallery IHC: 1 : 500 gallery IHC-P: not tested yet
Immunogen	Recombinant protein corresponding to AA 4439 to 4776 from rat Piccolo (UniProt Id: Q9JKS6)
Reactivity	Reacts with: rat (Q9JKS6), mouse (Q9QYX7). Other species not tested yet.
Specificity	K.O. validated
Matching control protein/peptide	142-0P
Data sheet	142_003.pdf

References for Piccolo - 142 003

WB (1)
ICC (10)
IHC (10)
Codex-PC (1)

How to Make an Active Zone: Unexpected Universal Functional Redundancy between RIMs and RIM-BPs.
Acuna C, Liu X, Südhof TC
Neuron (2016) 914: 792-807. 142 003 WB

Liprin-α proteins are master regulators of human presynapse assembly.
Marcó de la Cruz B, Campos J, Molinaro A, Xie X, Jin G, Wei Z, Acuna C, Sterky FH
Nature neuroscience (2024) : . 142 003 ICC; tested species: human

α-Synuclein induced cholesterol lowering increases tonic and reduces depolarization-evoked synaptic vesicle recycling and glutamate release.
Lazarevic V, Yang Y, Paslawski W, Svenningsson P
NPJ Parkinson's disease (2022) 81: 71. 142 003 ICC; tested species: mouse

Synaptic neurexin-1 assembles into dynamically regulated active zone nanoclusters.
Trotter JH, Hao J, Maxeiner S, Tsetsenis T, Liu Z, Zhuang X, Südhof TC
The Journal of cell biology (2019) : . 142 003 ICC; tested species: mouse

Neuromodulator Signaling Bidirectionally Controls Vesicle Numbers in Human Synapses.
Patzke C, Brockmann MM, Dai J, Gan KJ, Grauel MK, Fenske P, Liu Y, Acuna C, Rosenmund C, Südhof TC
Cell (2019) 1792: 498-513.e22. 142 003 ICC; tested species: mouse

Synaptic weight set by Munc13-1 supramolecular assemblies.
Sakamoto H, Ariyoshi T, Kimpara N, Sugao K, Taiko I, Takikawa K, Asanuma D, Namiki S, Hirose K
Nature neuroscience (2018) 211: 41-49. 142 003 ICC; tested species: rat

Reduced SNAP-25 increases PSD-95 mobility and impairs spine morphogenesis.
Fossati G, Morini R, Corradini I, Antonucci F, Trepte P, Edry E, Sharma V, Papale A, Pozzi D, Defilippi P, Meier JC, et al.
Cell death and differentiation (2015) 229: 1425-36. 142 003 ICC

Composition of isolated synaptic boutons reveals the amounts of vesicle trafficking proteins.
Wilhelm BG, Mandad S, Truckenbrodt S, Kröhnert K, Schäfer C, Rammner B, Koo SJ, Claßen GA, Krauss M, Haucke V, Urlaub H, et al.
Science (New York, N.Y.) (2014) 3446187: 1023-8. 142 003 ICC, IHC; tested species: mouse,rat

Neuronal profilin isoforms are addressed by different signalling pathways.
Murk K, Wittenmayer N, Michaelsen-Preusse K, Dresbach T, Schoenenberger CA, Korte M, Jockusch BM, Rothkegel M
PloS one (2012) 73: e34167. 142 003 ICC; tested species: mouse,rat

Wingless-type family member 5A (Wnt-5a) stimulates synaptic differentiation and function of glutamatergic synapses.
Varela-Nallar L, Alfaro IE, Serrano FG, Parodi J, Inestrosa NC
Proceedings of the National Academy of Sciences of the United States of America (2010) 10749: 21164-9. 142 003 ICC; tested species: rat

Postsynaptic Neuroligin1 regulates presynaptic maturation.
Wittenmayer N, Körber C, Liu H, Kremer T, Varoqueaux F, Chapman ER, Brose N, Kuner T, Dresbach T
Proceedings of the National Academy of Sciences of the United States of America (2009) 10632: 13564-9. 142 003 ICC; tested species: mouse

Lithium causes differential effects on postsynaptic stability in normal and denervated neuromuscular synapses.
Zelada D, Barrantes FJ, Henríquez JP
Scientific reports (2021) 111: 17285. 142 003 IHC; tested species: mouse

Volumetric super-resolution imaging by serial ultrasectioning and stochastic optical reconstruction microscopy in mouse neural tissue.
Vatan T, Minehart JA, Zhang C, Agarwal V, Yang J, Speer CM
STAR protocols (2021) 24: 100971. 142 003 IHC; tested species: mouse

Structure-function relation of the developing calyx of Held synapse in vivo.
Sierksma MC, Slotman JA, Houtsmuller AB, Borst JGG
The Journal of physiology (2020) 59820: 4603-4619. 142 003 IHC; tested species: rat

LKB1 coordinates neurite remodeling to drive synapse layer emergence in the outer retina.
Burger CA, Alevy J, Casasent AK, Jiang D, Albrecht NE, Liang JH, Hirano AA, Brecha N, Samuel MA
eLife (2020) 9: . 142 003 IHC; tested species: mouse

Bassoon-disruption slows vesicle replenishment and induces homeostatic plasticity at a CNS synapse.
Mendoza Schulz A, Jing Z, Sánchez Caro JM, Wetzel F, Dresbach T, Strenzke N, Wichmann C, Moser T
The EMBO journal (2014) 335: 512-27. 142 003 IHC

LKB1 and AMPK regulate synaptic remodeling in old age.
Samuel MA, Voinescu PE, Lilley BN, de Cabo R, Foretz M, Viollet B, Pawlyk B, Sandberg MA, Vavvas DG, Sanes JR
Nature neuroscience (2014) 179: 1190-7. 142 003 IHC; tested species: mouse

Active zones and the readily releasable pool of synaptic vesicles at the neuromuscular junction of the mouse.
Ruiz R, Cano R, Casañas JJ, Gaffield MA, Betz WJ, Tabares L
The Journal of neuroscience : the official journal of the Society for Neuroscience (2011) 316: 2000-8. 142 003 IHC; tested species: mouse

Superresolution imaging of chemical synapses in the brain.
Dani A, Huang B, Bergan J, Dulac C, Zhuang X
Neuron (2010) 685: 843-56. 142 003 IHC; tested species: mouse

Super-Resolution Microscopy Reveals a Nanoscale Organization of Acetylcholine Receptors for Trans-Synaptic Alignment at Neuromuscular Synapses.
York AL, Zheng JQ
eNeuro () 44: . 142 003 IHC; tested species: mouse

Multiplex imaging of human induced pluripotent stem cell-derived neurons with CO-Detection by indEXing (CODEX) technology.
Heinrich L, Zafar F, Morato Torres CA, Singh J, Khan A, Chen MY, Hempel C, Nikulina N, Mulholland J, Braubach O, Schüle B, et al.
Journal of neuroscience methods (2022) : 109653. 142 003 Codex-PC; tested species: human

Cat. No.: 142 003

Amount: 50 µg

Price: $460.00

References
WB (1)
ICC (10)
IHC (10)
Codex-PC (1)

How to Make an Active Zone: Unexpected Universal Functional Redundancy between RIMs and RIM-BPs.
Acuna C, Liu X, Südhof TC
Neuron (2016) 914: 792-807. 142 003 WB

Superresolution imaging of chemical synapses in the brain.
Dani A, Huang B, Bergan J, Dulac C, Zhuang X
Neuron (2010) 685: 843-56. 142 003 IHC; tested species: mouse

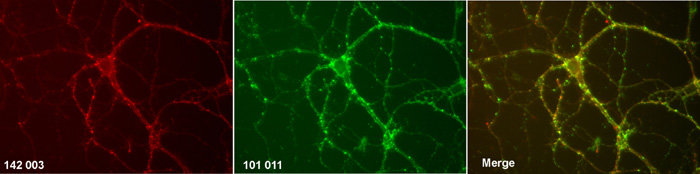

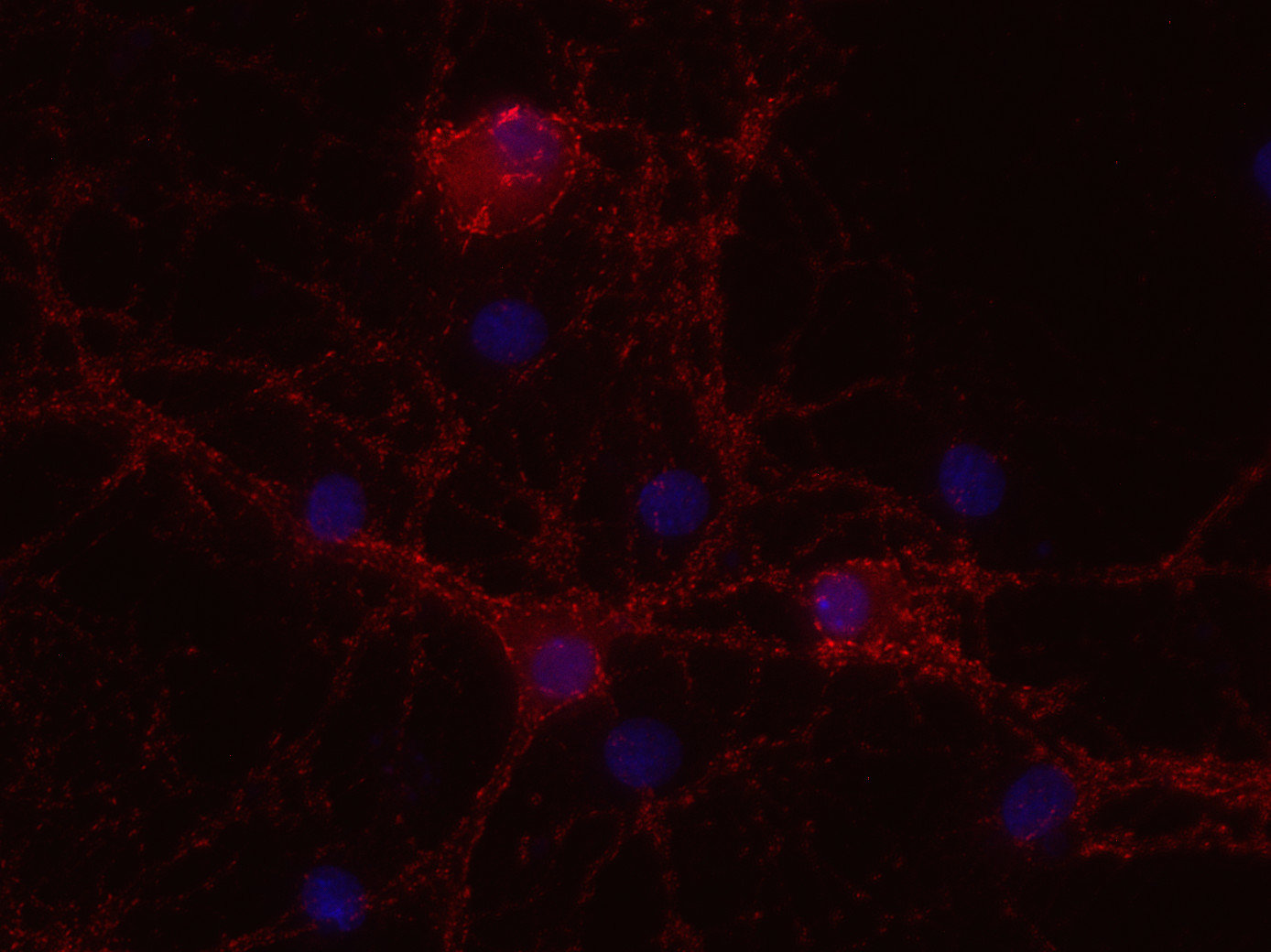

ICC

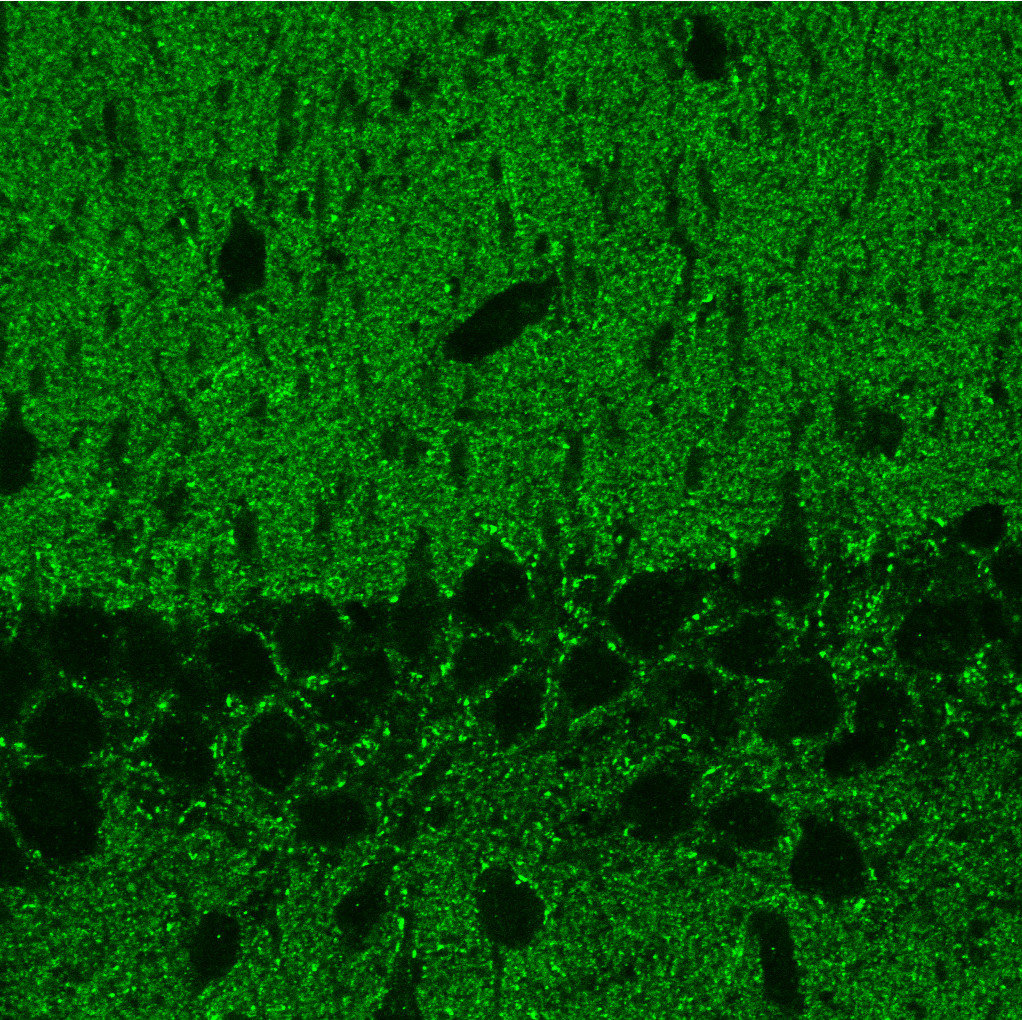

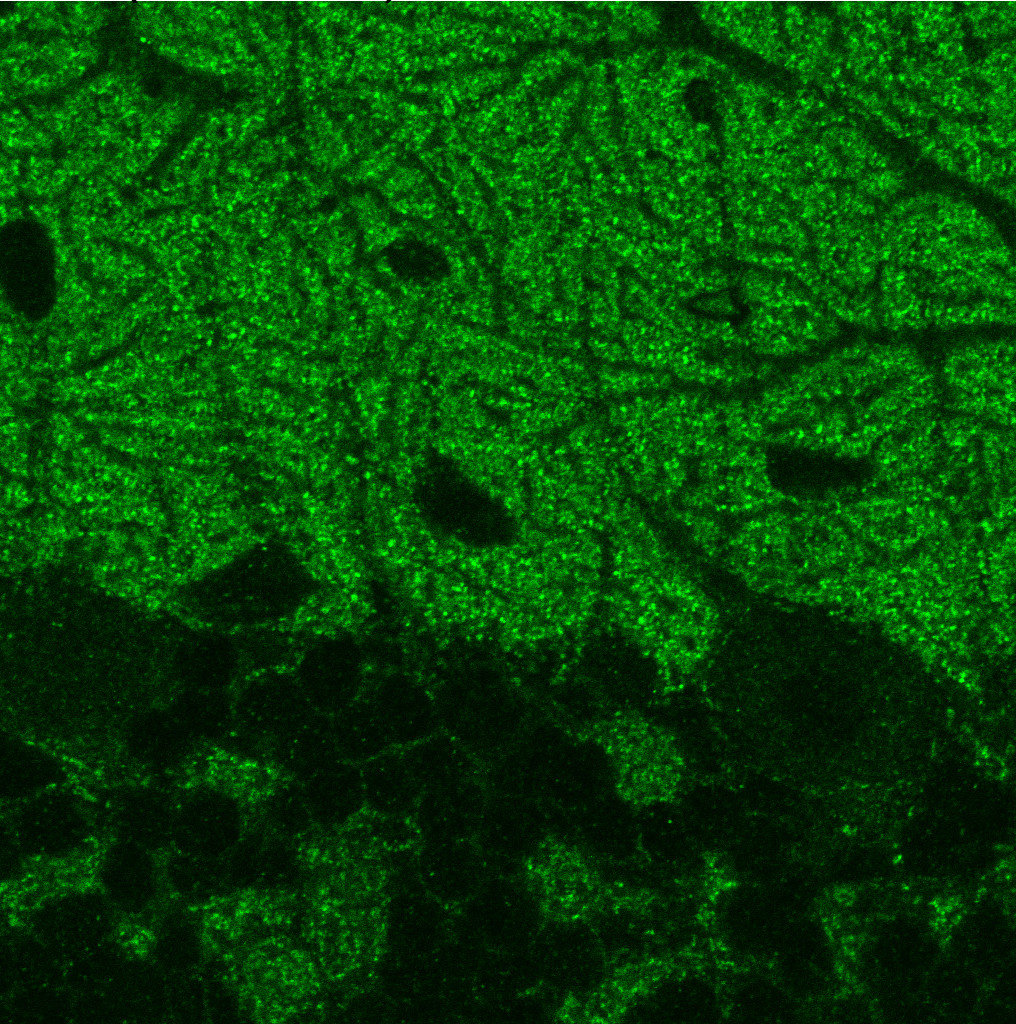

IHC

Background

Piccolo, also referred to as Aczonin, is a large protein which consists of an N-terminal Zn²⁺ finger, several piccolo-bassoon homology domains (PBH-domains) and C-terminal PDZ and C2 domains. In general it is found together with bassoon, a related huge multi-domain protein of the CAZ (cytoskeletal matrix assembled at active zones).
Piccolo is supposed to be a scaffolding protein for proteins involved in endo- and exocytosis of synaptic vesicles. Recently piccolo has been shown to interfere with clathrin mediated endocytosis by binding to the F-actin and dynamin binding protein Abp1.

1 ) Shapira M et al., Neuron (2003)
2 ) Fenster SD et al., J. Biol. Chem. (2003)
3 ) Fenster SD et al., Int. J. Dev. Neurosci. ()
4 ) Dick O et al., J. Comp. Neurol. (2001)
5 ) Gerber SH et al., EMBO J. (2001)
6 ) Fenster SD et al., Neuron (2000)
7 ) Cases-Langhoff C et al., Eur. J. Cell Biol. (1996)

Protocols

AP Detection
ECL Detection
Fluorescent detection
Pre-adsorption protocol

ICC

PFA fixation
Pre-adsorption protocol

IHC

Free floating
Slide mounted
Tissue preparation
Pre-adsorption protocol

OTHER

Preabsorbtion
